Beschreibung

• Formfaktor/CPU

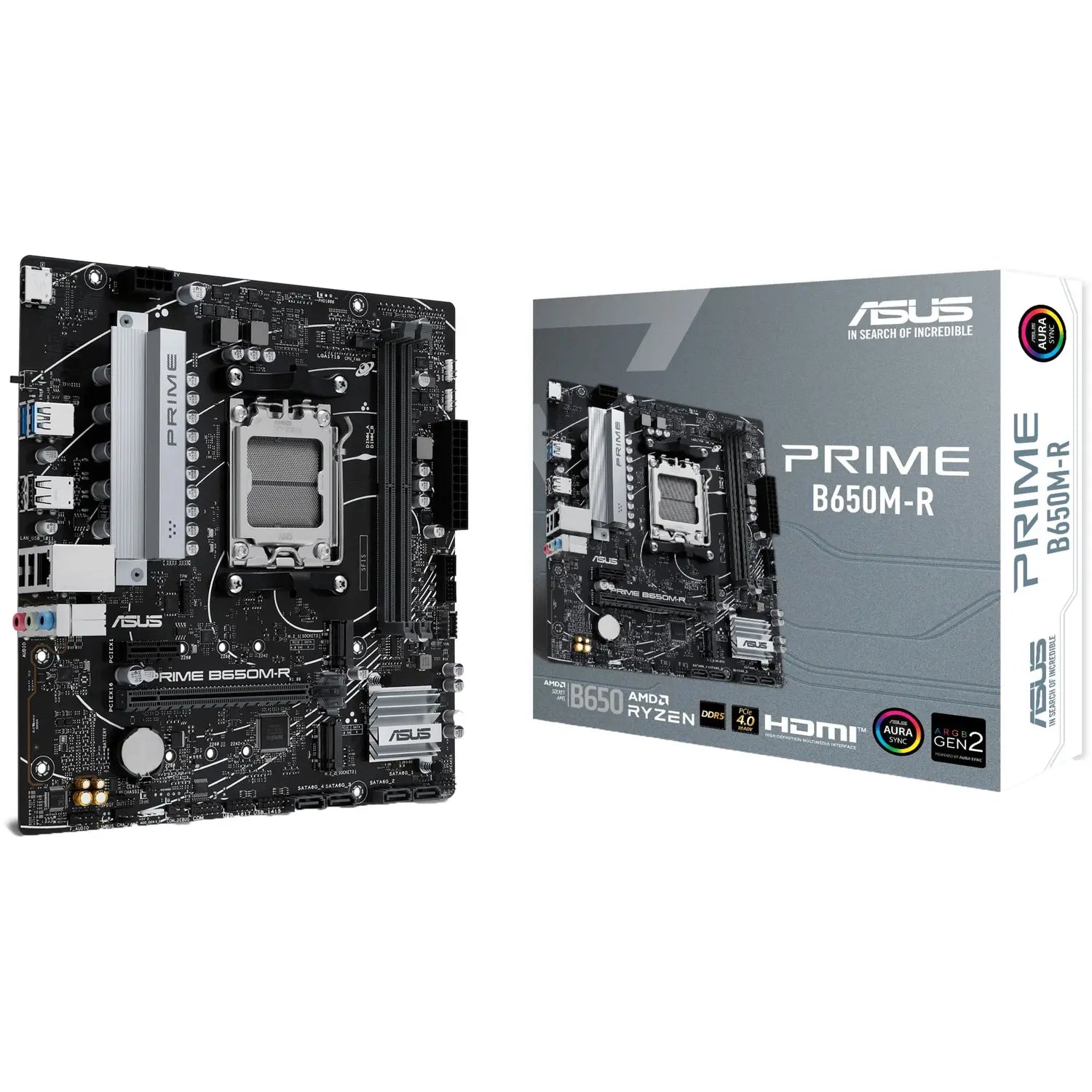

  mATX Mainboard mit Sockel AMD AM5 für AMD RYZEN 7000 Serie

• Chipsatz

  AMD B650

• Arbeitsspeicher

  96 GB maximaler Arbeitsspeicherbis 7200MHz maximale Taktung2x RAM-Slots (Steckplätze für Arbeitsspeicher)Speichertyp: DDR5Dual Channel-Architektur

• Graphik

  Radeon Vega Grafik (Ryzen CPU) Grafikchipsatz

• Steckplätze

  1x PCIe x11x PCIe x162x PCIe 4.0

• Anschlüsse

  Interne Anschlüsse:Fan and Cooling related1 x 4-pin CPU Fan header2 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 5Gbps connector (supports USB Type-C )1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x S/PDIF Out header1 x Speaker header1 x SPI TPM header (14-1pin)1 x 10-1 pin System Panel headerExterne Anschlüsse:2 x USB 5Gbps ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A)1 x HDMI port1 x Realtek 2.5Gb Ethernet port3 x Audio jacks1 x BIOS FlashBack button

• Netzwerk/ Kommunikation

  1x Gigabit-LAN,

• Sound

  Realtek 7.1 Surround,

• Besonderheiten

  ASUS 5X PROTECTION IIIDIGI+ VRMLANGuardOvervoltage ProtectionSafeslot CoreStainless-Steel Back I/OASUS Q-DesignQ-DIMMQ-LED CoreQ-SlotASUS Thermal SolutionVRM heatsink designASUS EZ DIYBIOS FlashBack buttonBIOS FlashBack LEDAura SyncAddressable Gen 2 headers

• Lieferumfang

  2 x SATA 6Gb/s cables1 x I/O Shield2 x M.2 Anchors1 x User guide
